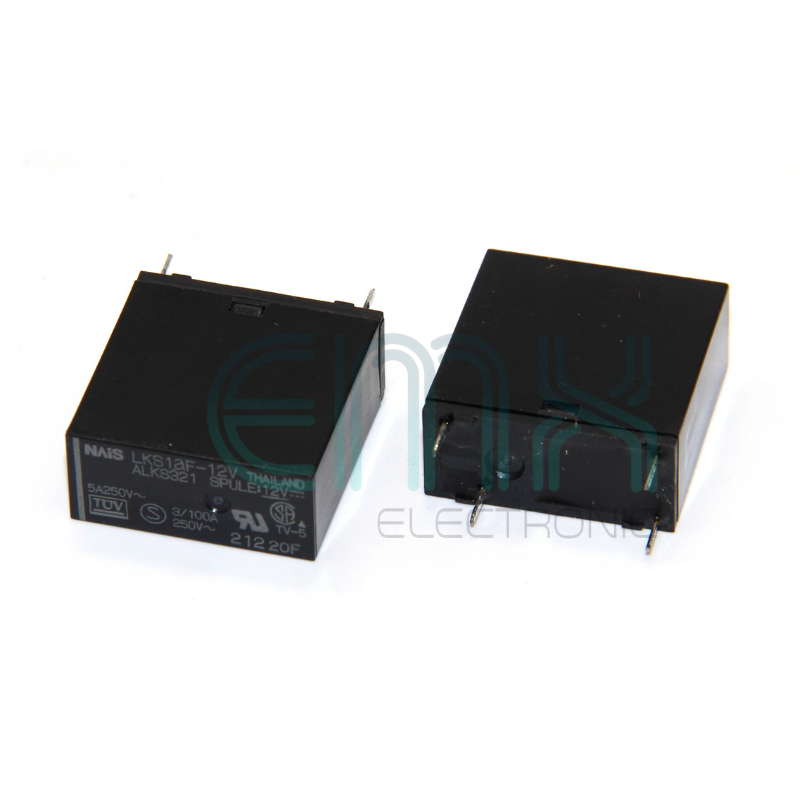

Precision Switching Power: NAIS LKS1aF-12V 4-Pin Relay 🔌✨

Achieve industrial-grade reliability with the NAIS LKS1aF-12V 4-Pin Relay. Manufactured by NAIS (Panasonic brand), this high-performance power relay is specifically designed for high-density PCB mounting, offering a durable and efficient solution for switching AC and DC loads in a compact, low-profile package.

Key Performance Features:

• ✅ Trusted NAIS/Panasonic Quality: Engineered for long-term durability and stable mechanical performance in demanding environments.

• ✅ Efficient 12V DC Coil: Optimized for low power consumption and reliable triggering from standard 12V control circuits.

• ✅ 5A Power Handling: Rated to switch up to 5A at 250V~ AC, making it suitable for managing small appliances, motors, and lighting circuits.

• ✅ High Inrush TV-5 Rating: Features a TV-5 rating, indicating superior resistance to the high inrush currents often found in capacitive and inductive loads.

• ✅ Compact 4-Pin SPST-NO Layout: Single Pole Single Throw (Normally Open) configuration with precision through-hole pins for secure board installation.

Professional Applications

The NAIS LKS1aF-12V Series is ideal for:

• Home Automation: Reliable switching for smart plugs, light controllers, and HVAC thermostats.

• Industrial Controls: Interfacing for PLC systems, sensors, and automated manufacturing equipment.

• Audio/Visual Equipment: Power management and protection circuits in professional AV gear.

• Security Systems: Triggering mechanism for electronic locks, sirens, and specialized surveillance hardware.

Technical Specs:

• 🏗️ Brand/Model: NAIS (Panasonic) LKS1aF-12V.

• 🏗️ Coil Voltage: DC 12V.

• 🏗️ Contact Rating: 5A 250VAC / TV-5.

• 🏗️ Pins: 4-Pin PCB through-hole.

• 🏗️ Certifications: Fully marked with TUV, S, and UL/CSA safety standards.

Top 3 Customer Questions & Concerns 🙋‍♂️

1. ⚡ What is the benefit of the TV-5 rating?

   • The TV-5 rating means this relay is specifically designed to handle the momentary "inrush" current that occurs when a device like a television or motor is first turned on, preventing the contacts from welding together.

2. 🔧 Can I use this relay for 5V microcontroller projects?

   • Since the coil requires 12V DC, you cannot trigger it directly from a 5V Arduino pin. You will need a transistor (like a 2N2222) to switch the 12V supply to the relay coil.

3. 💪 What is the default state of the relay?

   • This is an SPST-NO (Normally Open) relay. The circuit is disconnected until you apply 12V to the coil, at which point the contacts close to power your device.
