Details

---

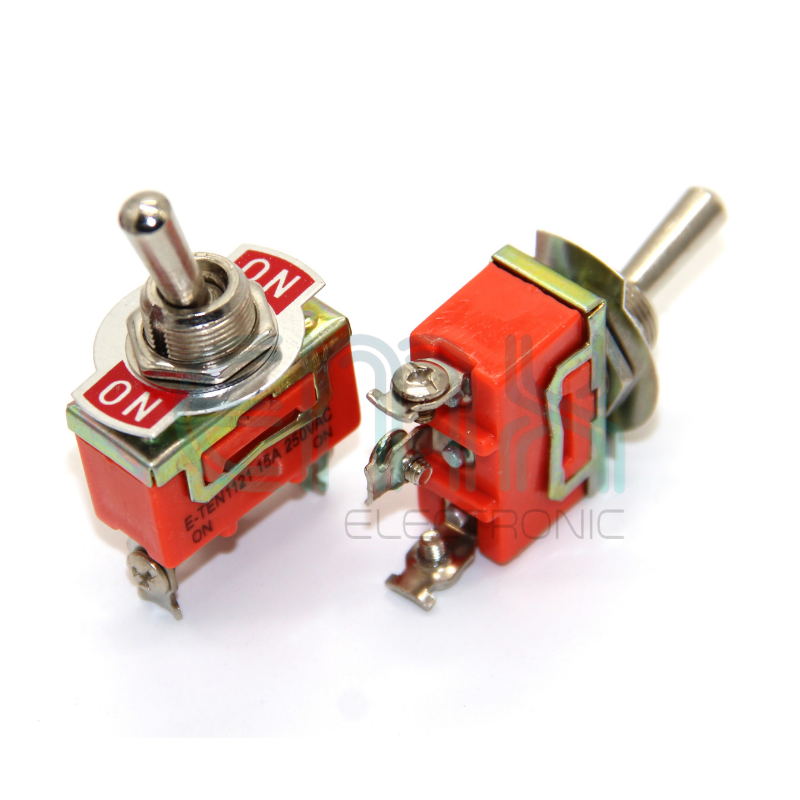

High-Power Reliability: 15A 250V Heavy-Duty ON-ON Toggle Switch ⚙️⚡

This 3-pin heavy-duty toggle switch is engineered for high-current applications demanding superior durability and mechanical precision. With its robust 15A 250V rating and large 28.8mm x 12.55mm base, this switch is designed to handle the rigors of industrial machinery and heavy-load equipment.

Key Performance Features:

• ✅ High-Current Capacity: Built to safely manage high-voltage loads with a rating of 15A at 250VAC, making it ideal for power-intensive environments.

• ✅ 2-Position ON-ON Action: Features a maintained Single Pole Double Throw (SPDT) configuration, allowing for seamless switching between two active circuits.

• ✅ Secure Screw Terminals: Equipped with heavy-duty screw terminals rather than standard solder lugs, ensuring a high-torque, vibration-resistant connection for thick-gauge wiring.

• ✅ Industrial-Grade Construction: Features a striking red thermoset body and a thick metal mounting plate designed to withstand extreme mechanical stress.

• ✅ Integrated Faceplate: Comes with a pre-installed "ON-ON" brushed metal indicator plate to provide clear visual confirmation of the switch status.

Typical Applications

• Industrial Machinery: Perfect for motor control, workshop power strips, and heavy-duty manufacturing equipment.

• Automotive & Marine: Ideal for high-amp auxiliary systems in trucks, boats, and off-road vehicles where reliability is paramount.

• Commercial Power Distribution: Frequently used in custom power distribution units (PDUs) and server rack power management.

Technical Specs:

• 🏗️ Dimensions: 28.8mm (L) x 12.55mm (W).

• 🏗️ Rating: 15A 250VAC.

• 🏗️ Terminal Type: 3 x Heavy-Duty Screw Terminals.

• 🏗️ Switching Action: SPDT ON-ON (Latching).

Top 3 Customer Questions & Concerns 🙋‍♂️

1. ⚡ Can this be used for DC applications?

   • Yes. While rated for 250V AC, these heavy-duty switches are excellent for 12V or 24V DC high-current systems in automotive and marine setups.

2. 🔧 What size wire can the terminals handle?

   • The screw terminals are designed to accommodate ring or spade connectors, making them compatible with various wire gauges typically used in 15A circuits.

3. 💪 Does it come with mounting hardware?

   • Yes. It includes a threaded bushing with a hex nut and the "ON-ON" indicator plate to ensure a secure and professional-looking panel installation.
