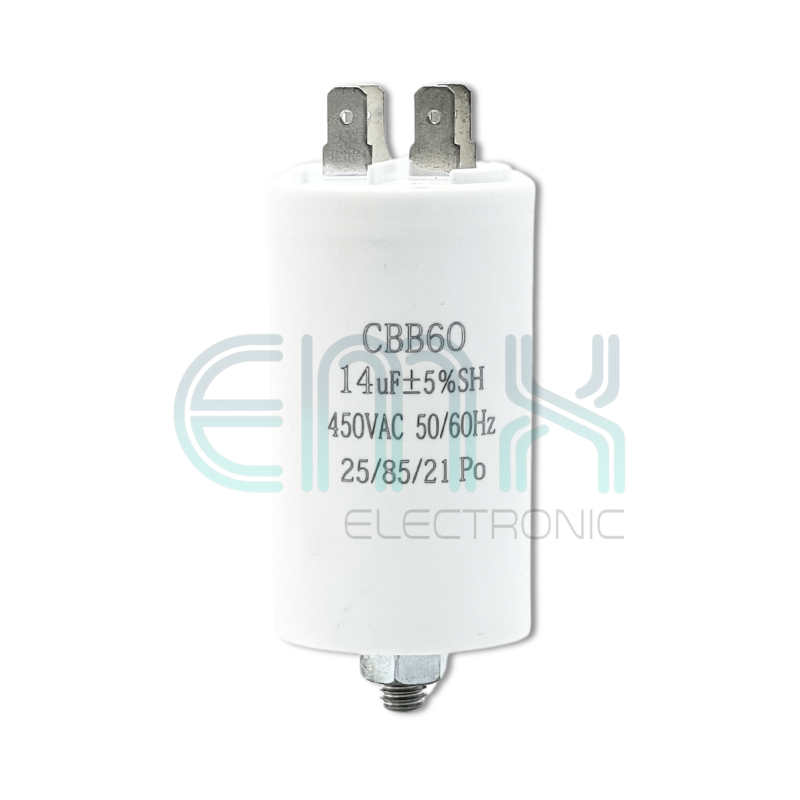

High-Efficiency Drive: CBB60 14uF 450VAC 4-Pin Run Capacitor ⚡🧺

Revitalize your heavy-duty appliances with the CBB60 14uF 450V 4-Pin Capacitor. This premium metallized polypropylene film capacitor is engineered to provide the intensive electrical phase shift and robust torque required by larger single-phase AC motors. Ideal for high-capacity washing machines, residential water pumps, and air compressors, it ensures powerful starting and smooth, energy-efficient running under heavy loads.

Key Performance Features:

• ✅ Precision 14uF Capacity: Rated at 14uF ±5%, specifically calibrated for larger motors that require a stronger electrical field to overcome mechanical resistance during start-up.

• ✅ 4-Pin Terminal Layout: Features a 2+2 dual-spade terminal configuration for quick, secure, and professional wiring in complex appliance control systems.

• ✅ Advanced Self-Healing (SH) Technology: Built with a specialized internal dielectric film that automatically repairs minor electrical punctures, significantly increasing the service life of the component.

• ✅ Superior Voltage Protection: Rated for 450VAC, offering a robust safety ceiling against common household power surges and high-heat operating conditions.

• ✅ Vibration-Proof Mounting: Includes an integrated threaded mounting stud on the base, ensuring the capacitor remains securely fastened to the machine chassis during intense cycles.

Typical Applications

• Heavy-Duty Washing Machines: Primary start and run support for main drive motors in large-drum units.

• Centrifugal Water Pumps: Ideal for residential booster systems and high-output pump motors.

• Air Compressors: Suitable for medium-sized portable air compressors and cooling units.

• Industrial Exhaust Fans: Provides stable, continuous power for high-volume ventilation systems.

Technical Specs:

• 🏗️ Model: CBB60.

• 🏗️ Capacitance: 14uF ±5% SH.

• 🏗️ Rated Voltage: 450V AC (50/60Hz).

• 🏗️ Terminal Type: 4-Pin (Dual Male Spade Terminals).

Top 3 Customer Questions & Concerns 🙋‍♂️

1. ⚡ Can I replace a 12.5uF or 15uF capacitor with this 14uF model?

   • Yes. Most AC motors operate safely within a ±10% to 15% capacitance range. A 14uF unit is an excellent replacement for original parts in this range.

2. 🔧 Does it matter which wire I connect to which pin?

   • No, CBB60 capacitors are non-polarized AC components. However, you must connect your lead wires to one pin on each of the two different dual-terminal sets.

3. 💪 How do I know when to replace my capacitor?

   • If your washing machine motor hums but doesn't rotate, or if the drum spins slowly and lacks power under a full load, the capacitor is likely weak and requires replacement.
