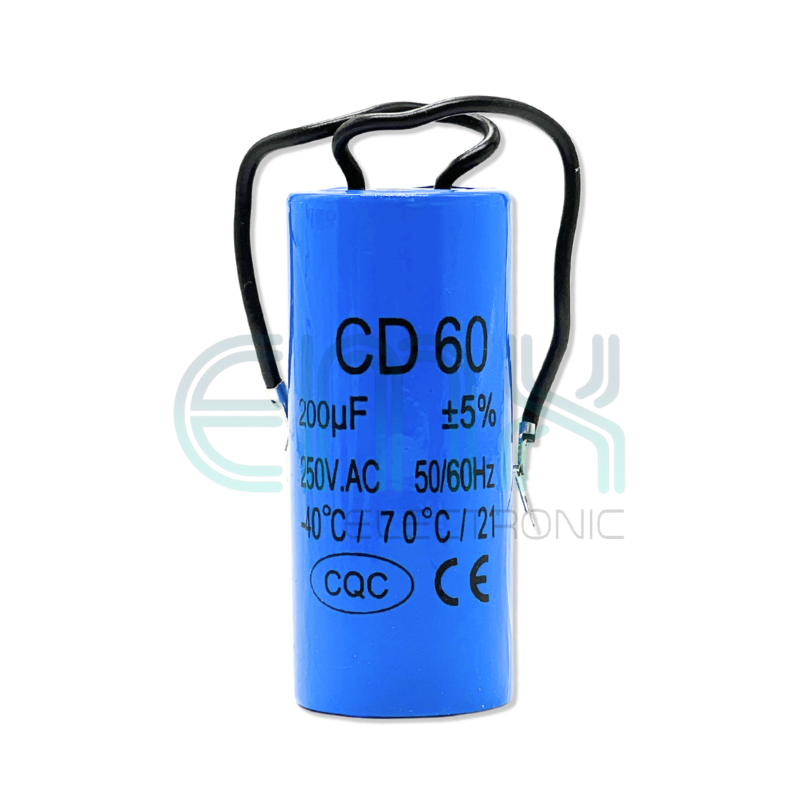

High-Torque Kickstart: CD60 200uF 250VAC Motor Start Capacitor ⚡⚙️

Empower your heavy machinery with the CD60 200uF 250V Starting Condenser. This high-capacitance electrolytic starting capacitor is engineered specifically to provide the massive electrical surge required to overcome high mechanical inertia during motor ignition. Designed for high-performance single-phase AC motors, it is the ideal replacement for stalled or sluggish air compressors, heavy-duty water pumps, and industrial-grade power tools.

Key Performance Features:

• ✅ Massive 200uF Capacity: Rated at 200uF ±5%, delivering significant energy storage to ensure instant motor rotation even under the heaviest start-up loads.

• ✅ Pre-Tinned Lead Wires: Equipped with two high-insulation black lead wires for a fast and secure connection to centrifugal switches or starting relays.

• ✅ 250V AC Industrial Rating: Built to handle 250VAC systems with stability across 50Hz and 60Hz frequencies, providing a reliable safety margin for domestic and workshop power.

• ✅ Extreme Temperature Durability: Features a wide operating range of -40°C to 70°C, ensuring your machinery starts reliably in unheated workshops or outdoor utility sheds.

• ✅ Industrial Safety Certified: Fully compliant with CQC and CE standards, housed in a reinforced high-insulation blue shell to prevent dielectric breakdown.

Typical Applications

• Industrial Air Compressors: High-capacity starting for motors fighting against significant tank head pressure.

• High-Flow Water Pumps: Provides the initial torque for irrigation, pool, and deep-well water systems.

• Large Workshop Machinery: Ideal for table saws, thickness planers, and heavy lathe motors.

• Centrifugal Start Motors: Suitable for any single-phase motor requiring a high-microfarad start-up boost.

Technical Specs:

• 🏗️ Model: CD60.

• 🏗️ Capacitance: 200uF ±5%.

• 🏗️ Rated Voltage: 250V AC.

• 🏗️ Frequency: 50/60Hz.

• 🏗️ Connection: Dual Lead Wires with Spade Connectors.

Top 3 Customer Questions & Concerns 🙋‍♂️

1. ⚡ Is this capacitor always active while the motor runs?

   • No. This is a Start Capacitor (CD60). It is designed to be in the circuit for only 1 to 3 seconds to get the motor spinning. If it stays connected longer due to a faulty switch, it will overheat.

2. 🔧 Can I replace a 150uF or 250uF with this 200uF unit?

   • Yes. For starting capacitors, you can generally move within a ±20% range of the original value. A 200uF unit provides a strong start for most motors originally equipped with 150uF to 250uF capacitors.

3. 💪 Why is the shell blue instead of white?

   • In the industry, Blue (CD60) typically identifies an electrolytic Starting Capacitor, while White (CBB60) identifies a film Run Capacitor. Always ensure you are replacing like-for-like to avoid motor damage.
