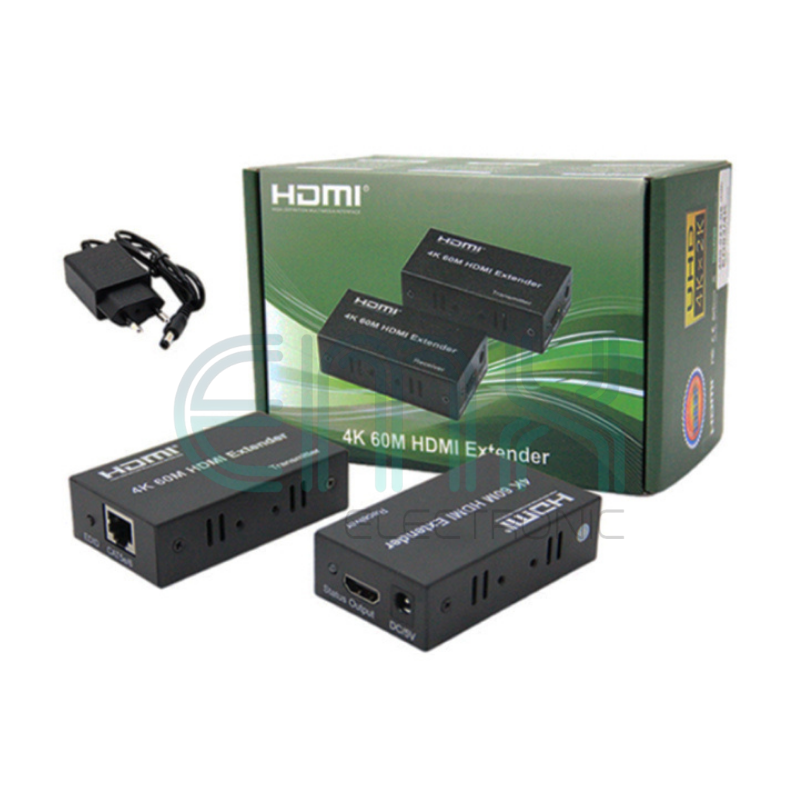

HDMI over Single CAT5e/6 Extender (60M) — Long-Range Full HD Transmission 📺🔌

The HDMI over Single CAT5e/6 Extender is a professional-grade solution designed to transmit high-definition video and audio signals across significant distances. By utilizing a single CAT5e or CAT6 network cable, this system can extend a 1080p Full HD signal up to 60 meters (196 feet), effectively overcoming the limitations and high costs of long-distance HDMI cables.

This kit includes a transmitter (TX) and a receiver (RX) unit, featuring advanced signal equalization and amplification to ensure your media remains crisp and stable, even at the maximum rated distance.

Key Performance Features

• ✅ Extended 60M Range: Transmits uncompressed Full HD signals up to 60 meters via a single CAT6 cable (up to 50m using CAT5e).

• ✅ 1080p Full HD Support: Fully compatible with high-definition resolutions, including 1080p, 1080i, 720p, and standard 3D video formats.

• ✅ POC (Power Over Cable) Support: Many models in this series require power at only one end (usually the transmitter), simplifying installation in areas with limited power outlets.

• ✅ Automatic Signal Equalization: Built-in auto-adjustment ensures optimal signal strength and clarity regardless of the cable length used.

• ✅ Deep Color & HDCP Compliant: Supports 24/30/36-bit deep color and is fully HDCP compliant for seamless playback of protected content (Blu-ray, Netflix, etc.).

• ✅ Robust Metal Housing: The durable industrial-grade casing provides superior heat dissipation and shields the internal components from electromagnetic interference.


Technical Specs 🏗️

• Extension Distance: Up to 60 Meters (196ft).

• Cable Requirement: Single CAT5e/6 (Solid Copper CAT6 is highly recommended for 60M runs).

• Resolution Support: 480i/p, 576i/p, 720p, 1080i/p.

• Audio Format Support: DTS-HD, Dolby-trueHD, LPCM7.1, DTS, Dolby-AC3, DSD.

• Power Supply: 5V DC.


Typical Applications 📋

• Commercial Display Systems: Sending 1080p content to digital signage in malls, airports, or large retail showrooms.

• Church & Auditoriums: Transmitting video feeds from a central control booth to large projectors or side-wall monitors.

• Security & Surveillance: Extending the HDMI output of an NVR/DVR to a remote security desk or guard room.

• Home Distribution: Routing a satellite box or gaming console signal from a basement rack to a television on a higher floor.


Top 3 Customer Questions & Concerns 🙋‍♂️

⚡ Does the type of network cable really matter?

Yes, significantly. For the full 60-meter reach, you must use high-quality Solid Copper CAT6 cable. Using Copper Clad Aluminum (CCA) or lower-grade CAT5e will drastically reduce the maximum distance and may cause signal flickering or a complete loss of image.

🛡️ Will there be a delay (latency) in the video?

This extender uses high-speed hardware processing to transmit the signal, resulting in near-zero latency. It is suitable for watching movies and standard television, though extremely competitive gamers may notice a negligible millisecond difference compared to a direct connection.

🔌 Why isn't there a picture on my 60M run?

Check your cable terminations (RJ45 pins). This device follows the IEEE-568B wiring standard. If even one pin is poorly crimped, the high-bandwidth HDMI signal will fail to transmit even if a basic network tester shows continuity.
