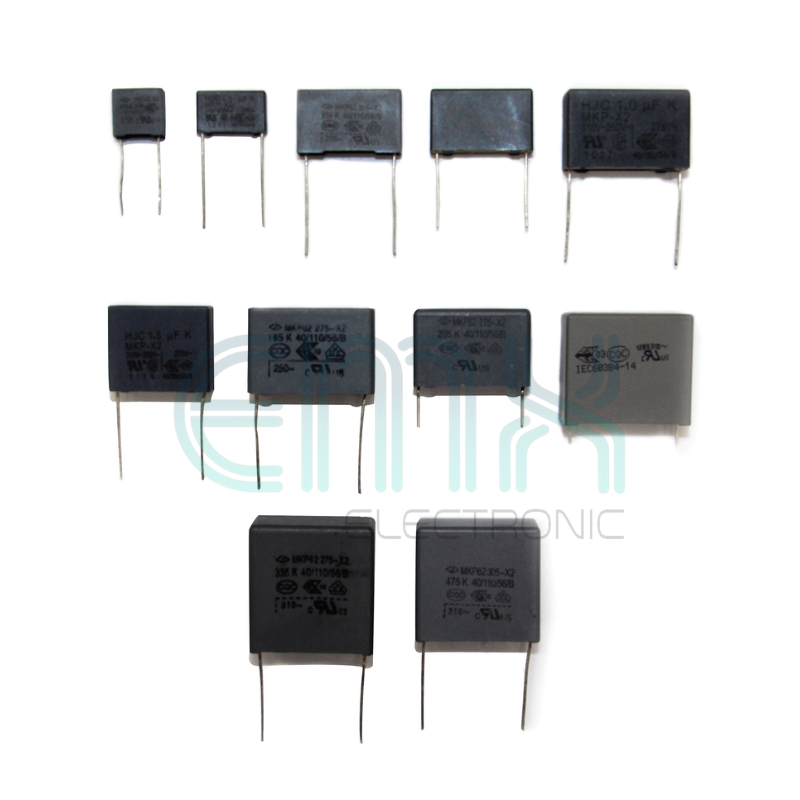

275V Grey Polypropylene Film Fan Capacitors — High-Reliability Motor Run Solutions (0.047 µF, 0.22 µF, 0.33 µF, 0.47 µF, 0.56 µF, 0.68 µF, 0.82 µF, 1 µF, 1.8 µF, 2 µF, 3.3 µF, and 4.7 µF)⚡🏠

These grey film capacitors are precision-engineered for AC motor applications, specifically designed to regulate speed and ensure smooth operation in household fans, ventilation systems, and small appliances. Available in a broad range of capacitance values from 0.047 µF to 4.7 µF, these components offer excellent self-healing properties and long-term stability under continuous electrical load.

With a standard 275V AC rating and compact box-style housing, they are the ideal choice for both manufacturing new cooling units and repairing existing fan motors.

Key Performance Features

• Precision Capacitance Range: Offereing a versatile selection of values including 0.047 µF, 0.22 µF, 0.33 µF, 0.47 µF, 0.56 µF, 0.68 µF, 0.82 µF, 1 µF, 1.8 µF, 2 µF, 3.3 µF, and 4.7 µF to match specific motor torque and speed requirements.

• High Voltage Stability: Rated for 275V AC operation, providing reliable performance in standard domestic power environments.

• Flame-Retardant Housing: Encased in a durable, grey UL 94V-0 rated plastic box that resists heat and prevents fire hazards during motor malfunctions.

• Self-Healing Technology: Utilizes metallized polypropylene film that can recover from internal dielectric breakdowns, significantly extending the component's lifespan.

• Low Dissipation Factor: Engineered for high efficiency, minimizing energy loss as heat to keep your fan motor running cool.

• Safety Certified: Features multiple international safety marks including UL, VDE, and CQC, ensuring compliance with global electrical standards.

Technical Specifications

• Rated Voltage: 275V AC.

• Capacitance Values: 0.047 µF to 4.7 µF.

• Color: Grey.

• Lead Type: Radial through-hole pins.

• Operating Temperature: -40°C to +105°C.

Typical Applications

• Ceiling & Pedestal Fans: Used as start or run capacitors to control motor speed and rotation.

• Exhaust & Ventilation: Reliable timing and motor control for kitchen and bathroom ventilation units.

• Small Domestic Appliances: Suitable for air purifiers, humidifiers, and small motorized tools.

• Circuit Interference Suppression: Can be used as X2 safety capacitors for EMI filtering in power supply circuits.

Top 3 Customer Questions & Concerns 🙋‍♂️

💨 Why is my fan spinning slower than it used to? A slow-spinning fan is often caused by a weakened capacitor. Over time, these components lose their ability to hold a charge. Replacing the old unit with a new capacitor of the exact same µF rating usually restores the fan to its original speed.

📏 Can I use a higher µF value to make my fan faster? It is strongly recommended to match the original value. Using a significantly higher µF rating can cause the motor to over-torque and overheat, potentially leading to permanent motor failure.

🛡️ What does the "X2" or safety mark on the casing mean? The safety markings indicate that the capacitor is designed to fail safely. If it encounters a massive power surge, it will "open" the circuit rather than catching fire, protecting your home and the appliance.
