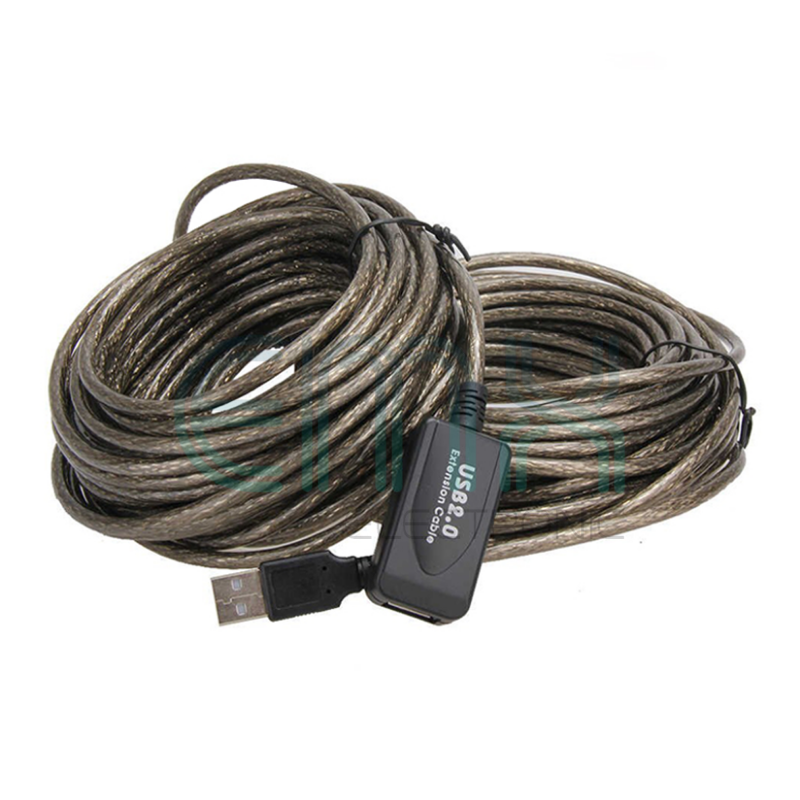

Active USB 2.0 Extension Male to Female Cable with Signal Booster 🔌🚀

Our Active USB 2.0 Extension Cables are engineered to overcome the standard 5-meter distance limit of USB technology. Featuring integrated high-performance signal boosters (repeaters), these cables maintain data integrity and prevent signal drop-off over extreme distances, making them ideal for professional AV setups and industrial applications.

Key Performance Features

• Integrated Active Repeaters: Features one or more inline signal booster modules that regenerate USB data signals to ensure reliable performance at lengths up to 30 meters.

• High-Speed Data Sync: Supports full USB 2.0 high-speed data transfer rates up to 480 Mbps for seamless device operation.

• Bus-Powered Efficiency: Powered directly by the USB port, eliminating the need for external power adapters in most standard applications.

• Enhanced Signal Protection: Equipped with ferrite cores to suppress electromagnetic interference (EMI) and radio-frequency interference (RFI) for a clean, stable connection.

• Plug-and-Play Simplicity: Fully transparent to the operating system; no additional drivers or software required for installation.

Technical Specifications

• Connector A: USB Type-A Male.

• Connector B: USB Type-A Female.

• USB Version: 2.0 (Backwards compatible with USB 1.1/1.0).

• Booster Type: Active Repeater Module.

• Available Lengths: 15M, 20M, 25M, 30M.

• Jacket Material: Durable, flexible PVC.

Typical Applications

• Remote Webcams & Security: Connect high-definition webcams or security cameras located far away from the control computer.

• Printer & Scanner Extension: Link office peripherals across large rooms or between different floors.

• Interactive Displays: Extend connections for touchscreens and interactive whiteboards in classrooms or boardrooms.

• Industrial Control: Bridge the distance between a control PC and specialized industrial machinery or CNC controllers.

Top 3 Customer Questions & Concerns 🙋‍♂️

⚙️ Do I need an external power supply for this cable? Most low-to-medium power devices (like mice, keyboards, or printers) run perfectly on bus power. However, for high-drain devices like external hard drives, we recommend using a powered USB hub at the female end of the extension.

⚠️ Can I daisy-chain multiple cables? While these cables are active, daisy-chaining multiple long extensions is not recommended as it can increase latency and decrease signal stability beyond the rated specifications.

🔌 Will this work with USB 3.0 devices? Yes, it is physically compatible, but the speed will be limited to USB 2.0 (480 Mbps). If your device requires high-speed 5 Gbps data, you should use a dedicated USB 3.0 active extension.
