2-Pin Heavy-Duty ON-OFF Toggle Switch | 28.8mm x 12.55mm 15A 250V Control ⚡🕹️

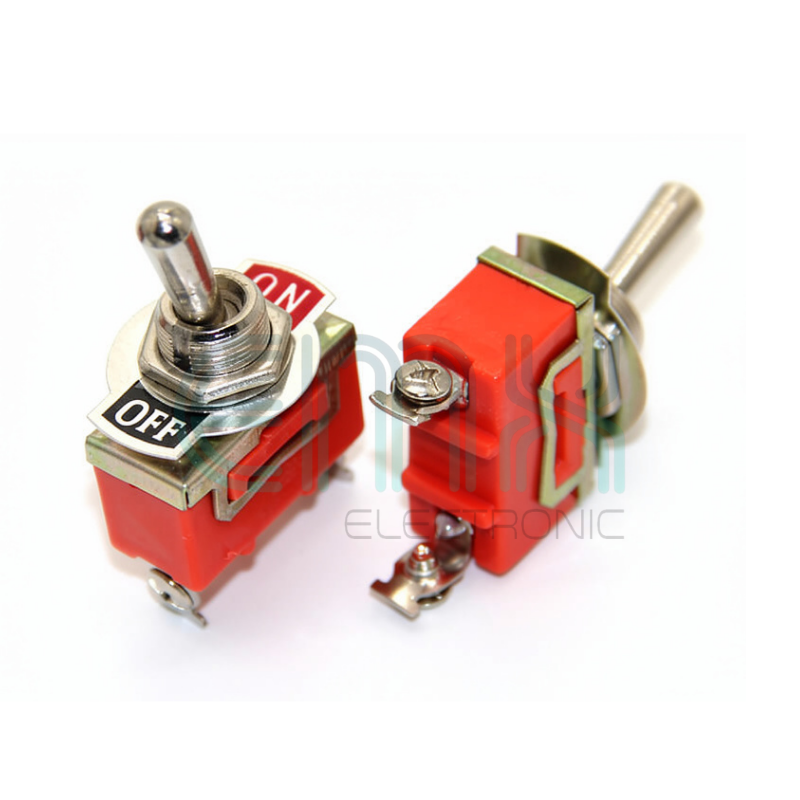

This 2-Pin Heavy-Duty Toggle Switch is a robust Single Pole Single Throw (SPST) power controller designed for high-amperage applications. Built with a reinforced red polymer housing and a classic metallic lever, this switch provides a secure physical disconnect for industrial machinery and automotive electrical systems.

Key Product Features

• High-Capacity Power Rating: Engineered to handle demanding electrical loads, rated for 15A at 250V AC (or up to 20A at 125V AC), making it suitable for heavy appliances and power tools.

• Durable Metallic Actuator: Features a polished chrome-plated lever that offers a positive tactile "click" and superior mechanical longevity compared to plastic alternatives.

• Clear ON-OFF Status Plate: Equipped with a pre-installed aluminum nameplate featuring high-contrast "ON" (Red) and "OFF" (Black) labels for immediate visual confirmation of the circuit state.

• Secure Screw-Terminal Connections: The base is fitted with two heavy-duty screw terminals, ensuring a vibration-resistant electrical contact for high-current wiring.

• Standard Panel Mounting: Designed with a threaded neck and dual-hex nut system for easy installation into standardized circular panel cutouts.

• Robust Chassis Design: The 28.8mm x 12.55mm rectangular body is constructed from heat-resistant, flame-retardant industrial polymer for maximum safety in professional environments.

Technical Specifications

• Switch Type: Toggle Switch (SPST ON-OFF).

• Actuator Style: Metallic Bat Lever.

• Body Dimensions: 28.80mm (L) x 12.55mm (W).

• Electrical Rating: 15A 250VAC / 20A 125VAC.

• Terminals: 2-Pin Screw-Down Lugs.

• Application: Ideal for workshop machinery, automotive auxiliary power, marine control panels, and custom power distribution units.

Top 3 Customer Questions & Concerns 🙋‍♂️

⚙️ Can I use this for a 12V automotive project? Yes. While it is rated for up to 250V AC, it will safely handle standard 12V or 24V DC automotive systems. Its high amperage rating makes it particularly effective for controlling auxiliary lights or high-power fans in vehicles.

🔌 Is it difficult to mount on a thick panel? No. The threaded mounting neck is long enough to accommodate most standard sheet metal or plastic panels. You simply drill a round hole, insert the switch, and tighten the provided hex nuts to lock it into place.

⚠️ Should I use the screw terminals or solder the wires? The terminals on this switch are specifically designed for screw-down connections using ring or spade lugs. While soldering is possible, the screw terminals are preferred for high-vibration environments (like cars or machinery) because they provide a more reliable mechanical bond.
